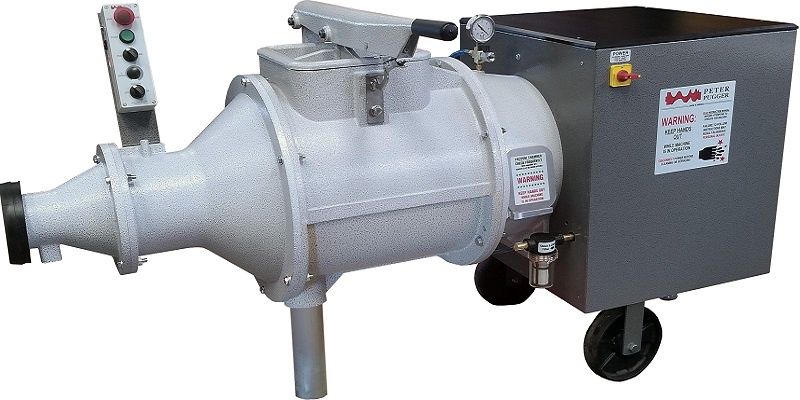

VACUUM POWER WEDGER - VPM-100

• Maximum Batch Capacity*: 250 pounds
• Pugging Rate: 2,000 lbs. per hour
• Mixing Rate: 600 lbs. per hour
• Dimensions: 67″L x 24″W x 31″H
• Crated Weight: Aluminum Version – 790 lbs. (Ships LTL Trucking)
• Hopper Door Size: 11″ x 11″
• Pug Size: 4″ round
• Electrical: 4 HP, 1-Ph 29 amps, 3-Ph 21.5 amps @ 240V
• Vacuum Pump: 1ea. 1hp, 1ea. 1/2hp  (Operates off main electrical)

*Max Batch Capacity may vary depending on material density and moisture content
